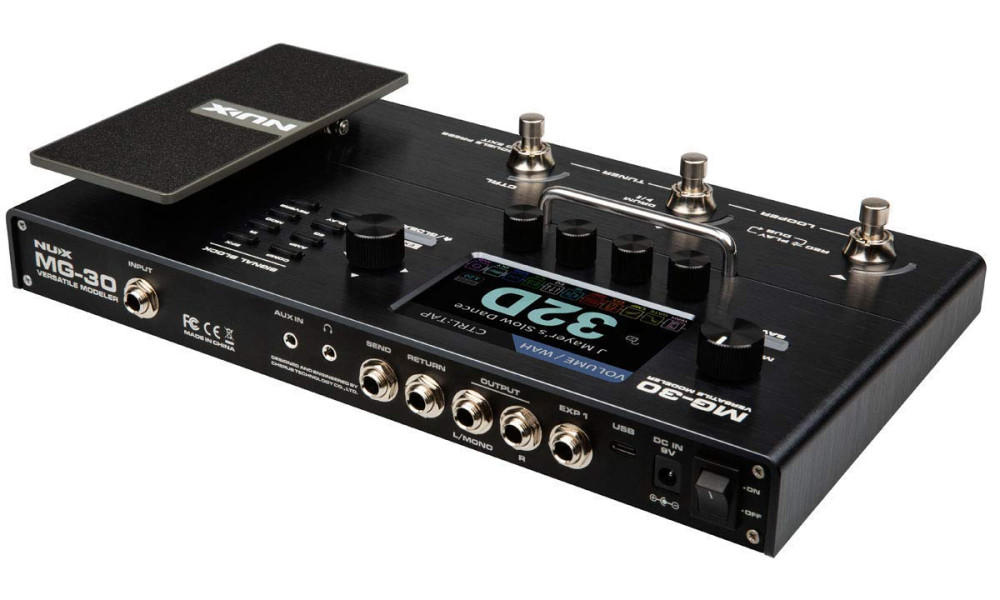

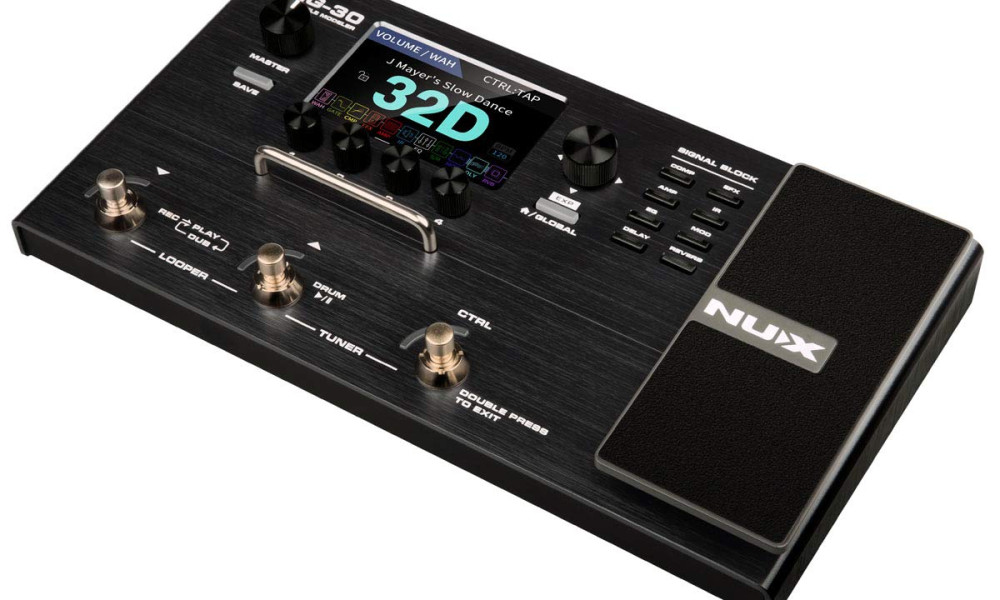

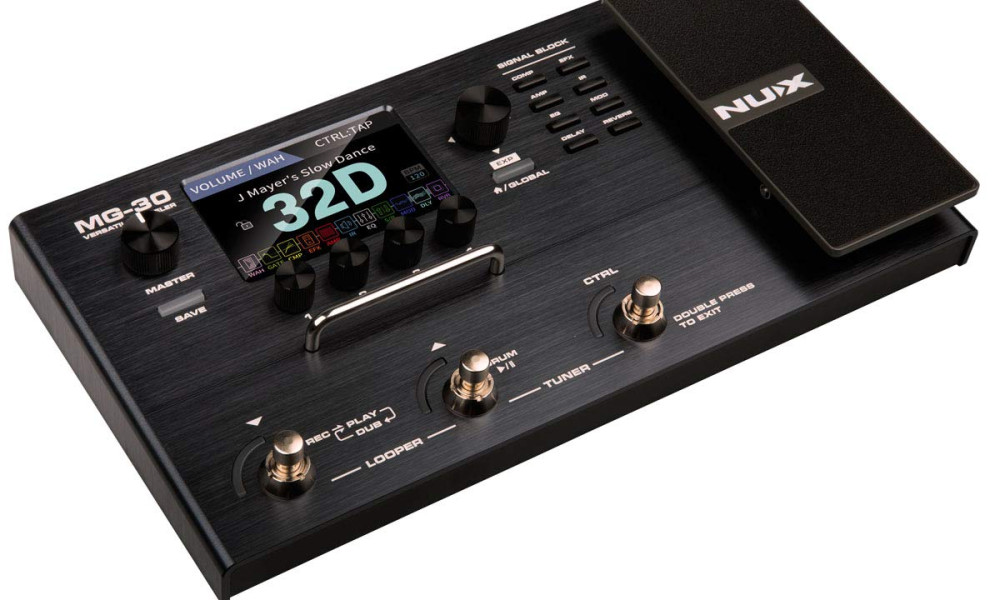

The NUX MG-30 is a professional-grade modeling multi-effects processor designed to deliver realistic amp response and advanced playability for guitar, bass, and acoustic musicians. Driven by dual NXP RT processors running the upgraded TSAC-HD (TSAC-2K) White-Box modeling algorithm, it offers 1024-sample Impulse Response (IR) resolution with an ultra-low latency of 2ms. The hardware features premium 32-bit 2-channel AD/DA converters that deliver a high-quality audio performance with a wide 110dB dynamic range.

Core Modeling & Sound Engine

• Amp Models: Features 30 to 35 total amp models encompassing 25 to 28 electric guitar amps, 3 to 5 bass amps, and 2 acoustic amps. It includes parameters to adjust the power amp bias on select models. [1, 2, 3, 4, 5]
• Cabinets & Microphones: Combines speaker simulations with 8 microphone types across 3 distinct microphone positions for meticulous sound crafting. [1]
• Impulse Responses: Supports 1024-sample resolution and includes a third-party IR loader with dedicated slots to load custom files. [1, 2]
• Effects Library: Equipped with 46 to 56 integrated effects including Wah, Overdrive, Distortion, Fuzz, Modulation, Delay, Reverb, Compression, and Noise Gate

• Routing & User Interface

• Display: Outfitted with a 4-inch large colorful LCD screen (800x400 resolution) that delivers an intuitive, manual-free editing workflow.

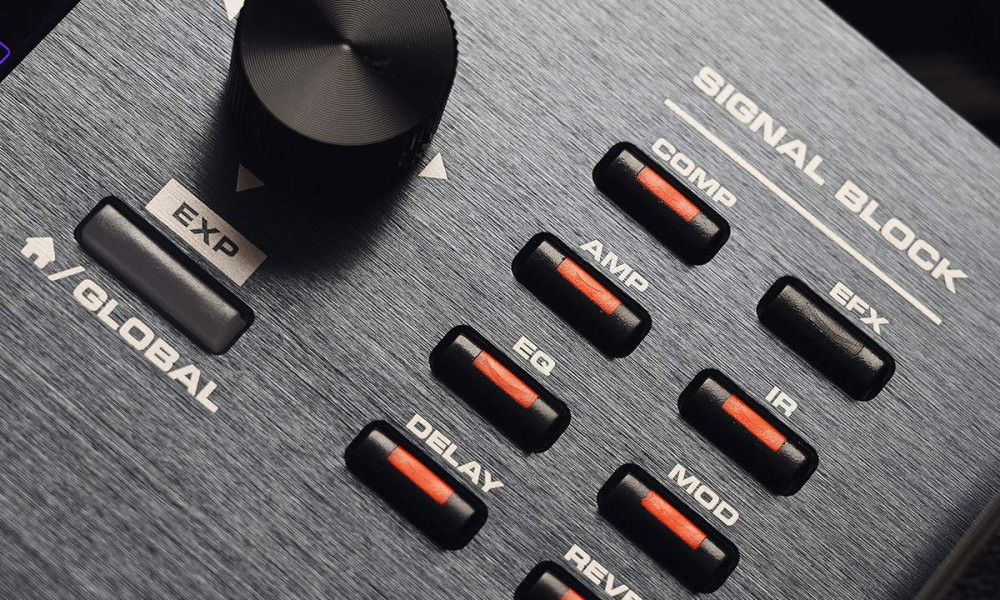

• Signal Chain: Offers 11 to 12 independent, freely movable signal blocks with optional parallel post-EFX routing for complex tone shaping.
• Navigation: Controlled via a physical 5-way encoder joystick alongside four rotary parameter knobs for fast adjustments.

• Performance & Connectivity Features

• Performance Tools: Includes a built-in 60-second phrase looper and an integrated drum machine.

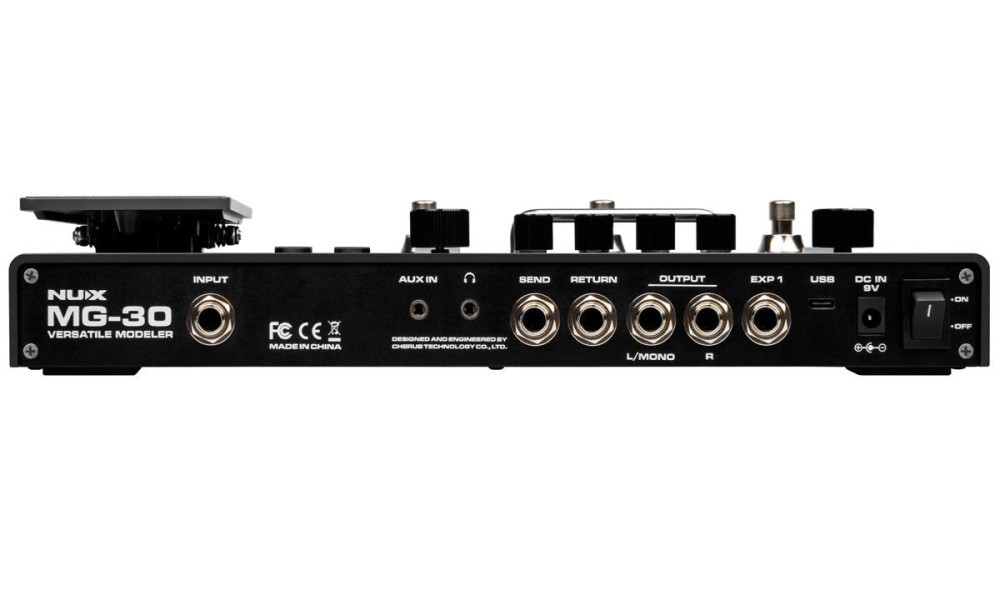

• Hardware Interface: Features a built-in expression pedal, balanced 1/4" TRS outputs, a dedicated Send/Return FX loop to integrate external stompboxes, an AUX input, and a headphone out.
• USB Functionality: Features a USB-C port that transforms the device into a USB audio interface for direct recording, firmware updates, and remote tone management via the QuickTone editor software.

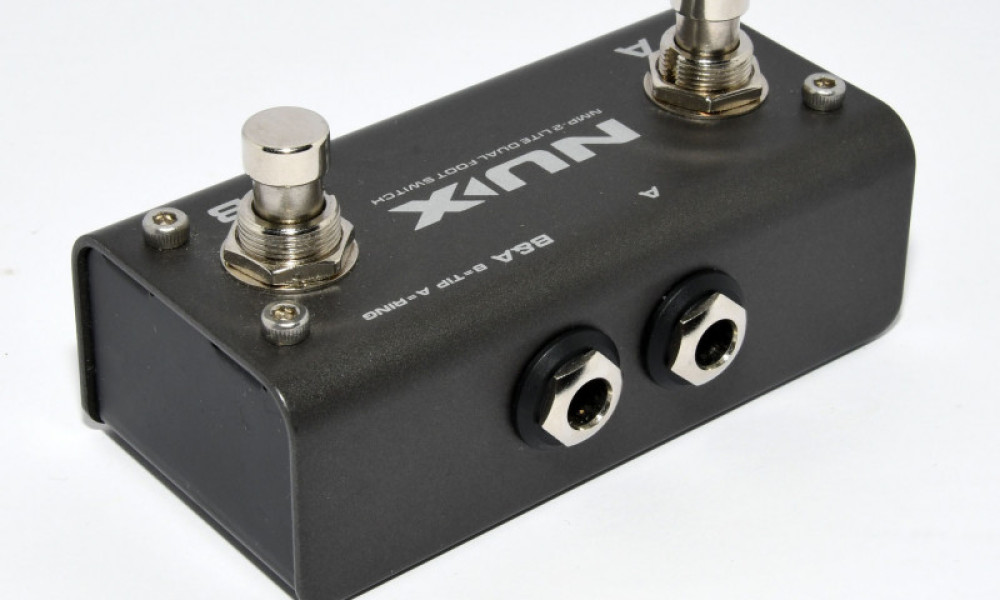

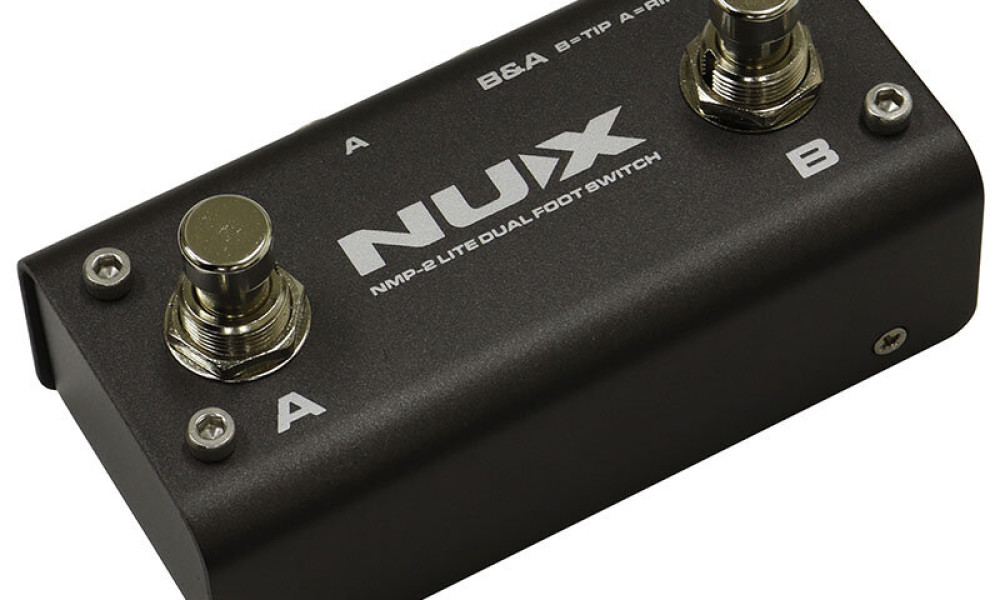

• Included Accessories: The package comes bundled with an external NMP-2 LITE two-button expansion footswitch, a patch cable, a power supply, and an instrument cable.
